3630
Construction-grade tractor

Engine HP at Rated RPM
630 hp at 2,000 rpm
Weight
53,890 lbs (base shipping)
65,250 lbs (with duals)
56,800 lbs (LSW tires)
Engine
Caterpillar ACERT C18 Tier 4 Final
Transmission
Caterpillar TA22H
Shipping Width
142 in (without duals)
189 in (with duals)
159 in (LSW tires)

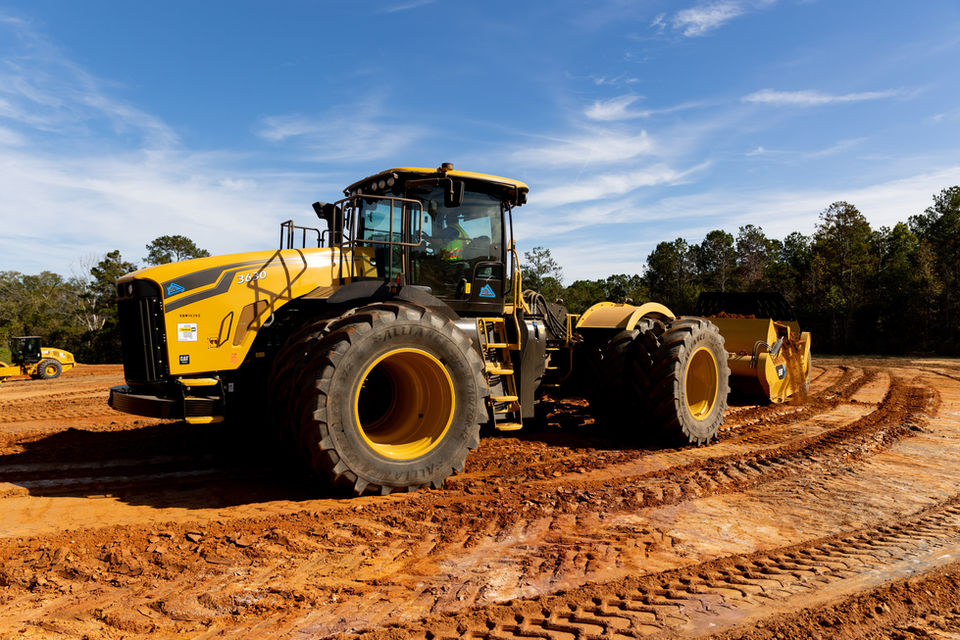

This rubber tired brother of the tracked 3630T is built as a true CONSTRUCTION GRADE tractor and far exceeds the production, reliability, and durability of leading agriculture tractors found on construction sites. Equipped with Cat® C18 engine and Cat® TA22H transmission, the 630hp exceeds that of Ag tractor manufacturers who try to modify their field tractors for pulling pans in construction.
This unit meets Tier IV requirements.
Features include:
-
Unit is available with either single 1250/35R46 tires or 710/70R42 duals.
-
Large cab, unique positioning of exhaust and Tier IV package provide unparalleled visibility for the operator.
-
Heavy duty rear axle designed to accept an industry leading 33,000 lbs of vertical hitch load.
-
Built as a true CONSTRUCTION GRADE machine the 3630 features:
-
ROPS certified to construction standards and not Ag standards
-
Decelerator pedal common on almost all construction vehicles
-
Cold weather starting package
-
Heavy duty VEP Stucchi hydraulic couplers
-
Construction grade wiring harness
-
-
Development of prototype units supported by Caterpillar OEM Products Group and included:
-
Over 12 weeks of testing at the Caterpillar Peoria Proving Ground
-
Incorporation of CAT parts for maximum serviceability
-
Electronics and engine packaging (including tier IV final) coordinated through the Caterpillar Tech Center
-
